Semiconductor Sample Preparation Solutions

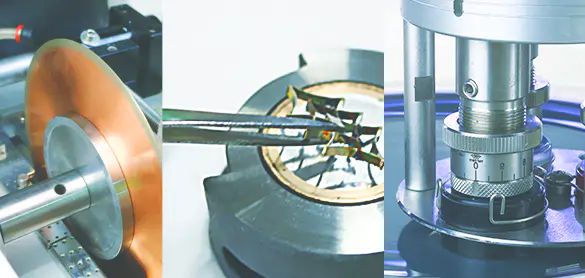

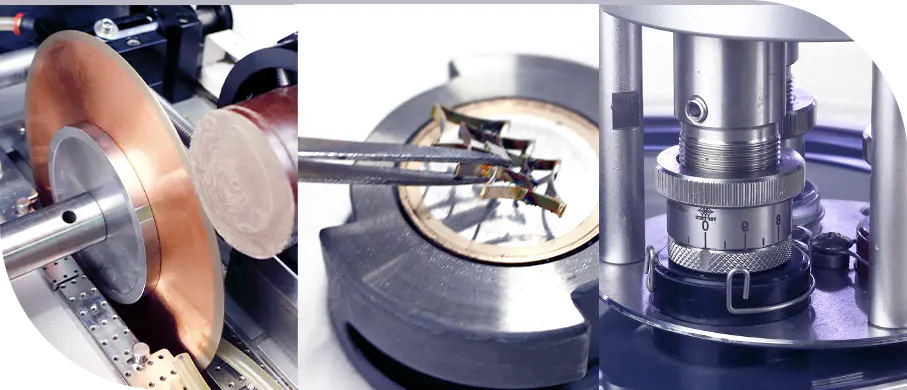

Metallography is an essential foundation for materials research and quality analysis. Through metallographic cutting, mounting, grinding, polishing, and microscopic examination, researchers can clearly analyze microstructures, grain structures, defects, and phase transformations. Metallographic equipment is widely used in universities, research institutes, and corporate laboratories to support reliable and repeatable material analysis.

In manufacturing, metallographic analysis is used to evaluate production processes, material quality, and machining results. Standardized cutting, mounting, grinding, and polishing procedures allow manufacturers to examine internal structures and processing defects. Metallographic equipment supports process improvement, quality control, and failure analysis, helping manufacturers achieve greater product consistency and reliability.

Screws, bolts, nuts, and other fasteners must withstand tensile, shear, and fatigue loads. Metallographic analysis can examine material microstructures, heat-treatment conditions, surface layers, and internal defects to verify manufacturing quality and material performance. Precision metallographic equipment provides stable and repeatable specimen preparation for reliable inspection results.

Aerospace components require extremely high levels of material strength, reliability, and safety. Metallography is widely applied to aluminum alloys, titanium alloys, superalloys, and composite materials to analyze grain structures, cracks, porosity, and manufacturing defects. High-precision metallographic equipment supports material qualification, quality verification, and failure analysis in the aerospace industry.

From engines, gears, and bearings to vehicle structures and electric-vehicle components, the automotive industry depends on reliable material quality. Metallographic equipment can analyze the microstructures of steels, aluminum alloys, and other automotive materials while evaluating heat treatment, welding, and machining quality. These applications help manufacturers improve component durability, safety, and production stability.

Metallography is an important tool in materials science and can be applied to steels, non-ferrous metals, ceramics, composites, and advanced materials. Through comprehensive specimen preparation and microscopic analysis, researchers can observe microstructural changes and defects, gain a deeper understanding of material properties, and support material development, selection, and quality verification.

Solder joints, connectors, metal films, and miniature components used in electronic products require precise material analysis. Metallographic equipment enables precision cutting, mounting, grinding, and polishing of small specimens. These processes help engineers examine soldering quality, interfaces, cracks, and material defects, supporting higher reliability and quality in electronic products.

Semiconductor manufacturing involves wafers, packaging structures, metal layers, solder joints, and other microscale features that require highly precise cross-sectional analysis. Metallographic equipment can be used for semiconductor packaging and material analysis. Precision cutting, grinding, and polishing produce high-quality cross-sections for examining interfaces, defects, and structural changes, supporting process improvement and failure analysis.
