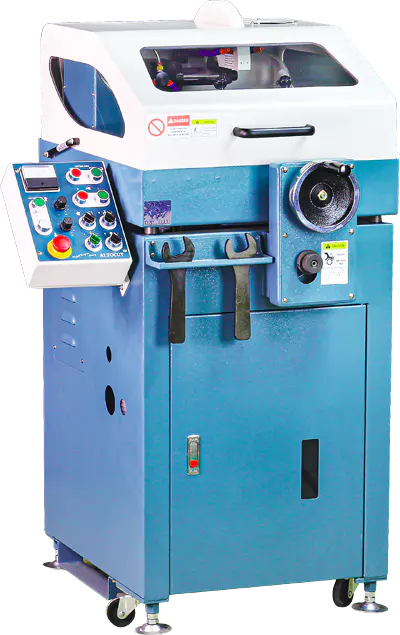

Floor Standing Manual Metallographic Cutting Machine-CK SERIES CK200M/200B
CK200M/200B
Prve
Back to List
Efficiency & Stability
▉ Precision Cutting Machine CK260B/360B/460B Series:
○ Maximum Cutting Capacity: Ø120mm Workpiece
○ Core Technology: Heavy-Duty, Low-Vibration Design
○ Cutting Mode: Auto Feeding + Return
○ Suitable Industries: Electronics, Automotive, Aerospace, Manufacturing, Research & Education
Key Points
The CK260B Precision Cutting Machine Series offers a maximum cutting capacity of Ø120mm, high rigidity, low vibration, and an automation-ready heavy-duty cutting structure with industrial-grade intelligent overload protection, delivering stable and reliable cutting performance. Widely used in metallographic sample preparation, it significantly accelerates downstream processing steps.
Application
Featuring both manual and automatic feeding modes — including auto feeding and auto return — this machine is ideal for various medium-to-large metallic materials such as steel, iron, titanium, copper, aluminum, ceramics, motors, crankshafts, gears, and turbines. Whether in the automotive, aerospace, manufacturing, or academic research fields, it provides efficient and precise cutting results, delivering high-quality samples for metallographic analysis, hardness testing, and material evaluation.
Difference
Key Comparison Between CK260B, CK360B, and CK460B
| Spec. | CK260B | CK360B | CK460B | Key Difference |
|---|---|---|---|---|
| Cutting Travel (mm) | 260 | 360 | 460 | CK460B provides the longest travel |
| Max Cutting Capacity (mm) | Ø70 / Ø90 | Ø90 / Ø120 | Ø120 | Higher models support larger workpieces |
| Cutting Power (HP) | 3 / 5 | 5 / 7.5 | 10 | CK460B has the highest horsepower for heavy-duty cuts |
| Blade Size (inch) | 12” | 12” / 16” | 16” | 16” blades supported starting from CK360B |
| Vise Size (mm) | 130×60 | 130×60 / 170×85 | 170×85 | Larger vises available on CK360B/CK460B |
| T-slot Table Size (mm) | 235×300 | 235×300 / 235×340 | 235×340 | Larger table size on higher models |
| Total Wattage (W) | 2500 / 4000 | 4000 / 5800 | 7700 | Higher tonnage requires greater wattage |
| Machine Weight (kg) | 358–365 | 454–476 | 503 | Heavier models offer higher stability |
Other specifications (such as feeding method (automatic + manual), spindle speed (2500 / 2100 rpm), feed rate (10–75 mm/min), Y-axis travel 45 mm, 1/4HP coolant pump, AC220/380V three-phase power, and shared safety/visibility/cleaning features) are identical across all three models.
Download
Interested in this product?
Click below to download the PDF catalog and access complete technical details.
Sample Testing
▎Professional · Secure · Free
✔ Free sample cutting and grinding tests
✔ Secure sample handling with strict labeling and protection
✔ Evaluation by a professional engineering team
✔ Fast feedback with recommended process solutions
Helping you quickly identify the most suitable equipment configuration and process conditions.
Contact Us
▎Response within 1 business day
Not sure which equipment or consumables to choose?
Looking for a solution for sample preparation and inspection?
From equipment selection (cutting, grinding & polishing, and mounting machines), consumable matching, and customized design modifications to complete sample preparation solutions, our 30 years of experience ensures precise recommendations and professional support.
📌 Why Choose The Metallographic Cutting Machine- Feeding Cutting (CL50F-E)
Metallographic Cutting Machine (Feeding Cutting) CL50F-E adopts a feeding cutting design. The cutting process maintains a stable current, effectively enhancing cutting quality while ensuring the integrity and accuracy of the sample.
It is widely used in industries such as aerospace, automotive, manufacturing, and hand tools, and is suitable for small samples such as, steel, iron, aluminum, copper, ceramics, sensors, and more.
The machine is equipped with multiple safety and convenience features, including:
● Safety sensor on the top cover: Automatically stops the spindle when the cover is opened, ensuring operator safety.
● Transparent acrylic cover: Enhances visibility during operation and offers excellent impact resistance.
● Magnetic cleaning spray pipe: Flexible positioning and easy to clean, improving operational efficiency.
Supports a wide variety of vises and optional accessories:
● In addition to the quick-release vise, it can be equipped with an automatic rotating clamping vise, supporting a maximum cutting diameter of Ø80mm.
● Offers various optional vises suitable for irregular, fragile, or specially shaped samples.
● Optional magnetic LED light and electromagnetic locking acrylic safety cover further enhance visibility and operational safety.
Metallographic Cutting Machine (Feeding Cutting) CL50F-E comes with a Ø255mm cutting wheel, a cutting travel distance of up to 200mm, and a spindle speed of 3000 rpm (60Hz). It supports AC220V/380V power input, making it a high-performance precision cutting machine that delivers an optimal balance of economy, safety, and cutting quality.
📌 Machine Specifications
| Model | CL50F-E |
|---|---|
| Motor Power | 1500W |
| Cutting Capacity | Max. Ø50mm |
| Cut-off Wheel | Ø255mm (10") |
| Machine Dimension | 700x838x525mm |
| Machine Weight | 127kg |
| Power Supply | AC220/ 380V 3Ø |
📌 Core Advantages
Feeding CuttingFeeding cutting mode offers exceptional stability and smoothness throughout the cutting process, significantly enhancing cutting quality. It is widely applied in metallographic cutting of both hard and soft materials, ensuring the integrity and accuracy of samples.
Safety Sensor on the Top Cover Equipped with intelligent detection functionality, the spindle will immediately stop rotating once the top cover is opened, effectively preventing accidents and ensuring operator safety. This design not only enhances equipment safety but also complies with various industrial safety standards. It is an important mechanism for safeguarding daily operations, reducing risks associated with human error.
Magnetic Cleaning Spray Pipe The magnetic design significantly enhances the convenience and flexibility of cleaning process. With magnetic design, users can easily adjust and position the spray pipe, preventing interference with the cutting process. This design effectively reduces conflicts between cleaning and operation, improving the workflow and efficiency.
Transparent Acrylic Top Cover The transparent acrylic top cover not only provides excellent durability but also significantly enhances the user's field of view, making observation during operation more convenient. In addition, the acrylic material offers good impact resistance, ensuring safety and long-term stability during use.
Diverse Vise Applications Users can flexibly select or customize the appropriate vise based on the size, shape, and cutting requirements of the sample, ensuring stable clamping and operational stability during the cutting process.
External Cooling Circulation Tank Provides continuous coolant supply during the cutting process, effectively reducing the temperature of both the sample and the blade, ensuring stable cutting quality. Additionally, the use of coolant prevents deformation or damage caused by overheating and avoids rusting of machine castings from prolonged water exposure.
Emergency Stop It allows users to stop the machine immediately in an emergency, effectively preventing accidents. The button is positioned noticeably and is easy to operate, ensuring that users can react quickly to reduce the risk of incidents.
Ammeter Effectively monitors current changes during the cutting process, providing instant feedback to the operator to ensure stability and safety. Significant current variations indicate increased cutting resistance or abnormal situations, suggesting to slow down the cutting speed to avoid overloading, which could damage the equipment or affect cutting quality.
Electromagnetic Lock Acrylic Safety Cover (Option) Automatically locks the top cover during the cutting process to ensure operational safety. This design prevents accidental opening of the top cover during cutting, avoiding operator contact with the high-speed cut-off wheel and effectively reducing risks in the workspace. The electromagnetic lock mechanism only releases automatically after the cutting process is completed, further enhancing safety.
Magnetic Rechargeable LED Light (Option) The magnetic LED light can be easily attached to the machine, providing auxiliary lighting to help users clearly observe the cutting process, enhancing operational accuracy and safety. The light angle can be flexibly adjusted to meet different samples and environmental requirements. The machine has a reserved socket hole for charging at any time, ensuring long-term stable use.
Automatic rotating clamping vise set (option) Equipped with its independent charging module, eliminating the interference of power cables and wires, making the workspace cleaner. Combined with a feeding cutting platform, it supports a maximum cutting diameter of Ø80mm, suitable for various cutting requirements.
