Preciso-Cl Series
CL40
CL40 is precision diamond saw that incorporates the gravity cutting system. With a max. cutting capacity of Ø40mm, CL40 is specifically designed for ceramic, plastic, aluminum, copper, iron, and other small materials.
Prve
Back to List
Features
Application range : research & education institution, electronic industry, and manufacturing industry
Suitable for ceramic, plastic, steel, copper, iron and delicate parts
Suitable for ceramic, plastic, steel, copper, iron and delicate parts
Anti-corrosive aluminum alloy body and stainless components
Counterweight rock arm cutting
Adjust loading pressure according to sample materials, which can minimize a deformation of delicate parts.

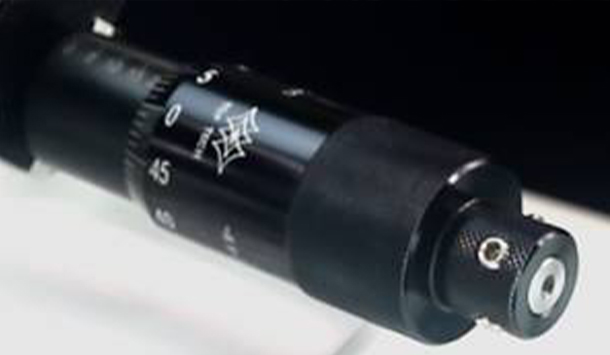

Horizontal movement micro-adjustment
Micrometer device movement from 0.01~25mm.
Spindle speed variation function
A variable spindle rotational speed from 0 to 400rpm. A Low speed cutting effectively prevents a thermal deformation.

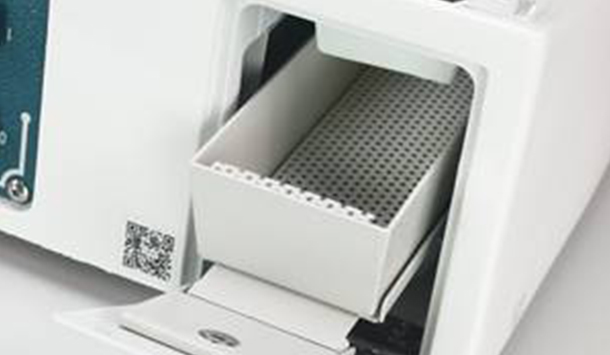

Hidden water tank
Easy to remove to take the sample or replace cutting fluid.
Electric magnetic Interlock (Option)
Opt for the electric magnetic interlock with transparent full closure to ensure safety during cutting.

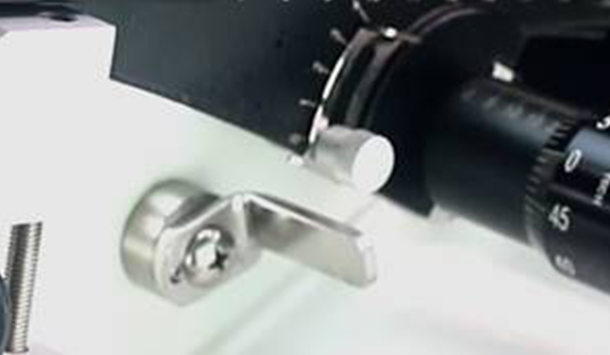

Automatic stop cutting protection device
The device can be adjusted flexibly according to sample dimensions, which can save cutting time.

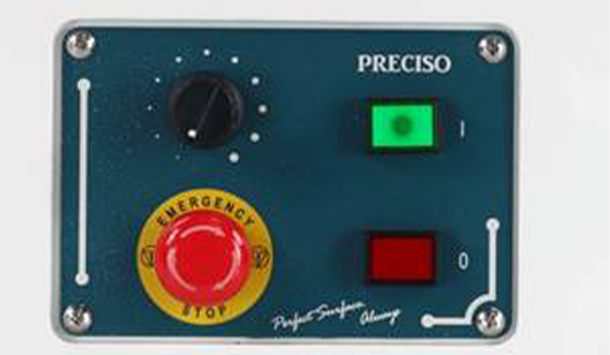

Intuitive operation panel
Friendly interface and intuitive buttons.
Low noise and low vibration
Suitable for research & education institution and laboratory application.
Dressing system (Option)
Dressing a cut off wheel properly to extend its life span and keep it sharp. The dressing system can also be used during cutting.

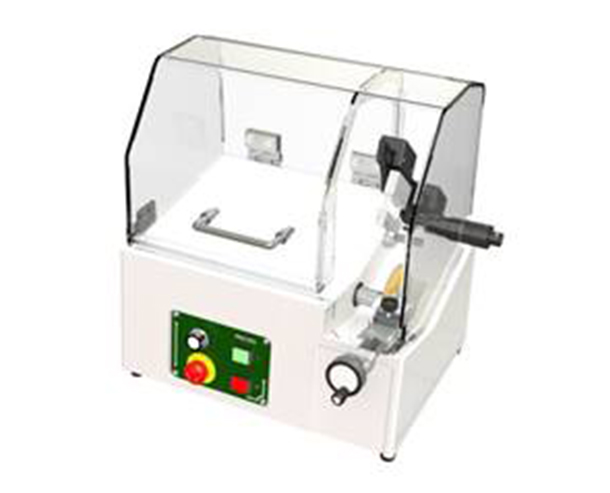

Transparent full closure (Option)
Transparent full closure offer a complete visibility on the cutting chamber, and it avoids hands or objects becoming entangled in moving parts of machinery.
Various clamps for choice (Option)
Easy to replace clamps. Choose the clamps according to dimensions, shapes and features of samples to enhance flexibility of operation.
| Model No. | CL40 |
|---|---|
| Motor Power (w) | 40 |
| Cutting Ability (mm) | Max. Ø40 |
| Cut-off Wheel | Ø3"~ Ø5“ (Ø76.2mm~Ø125mm) |
| Idling Noise Level (dB) | 55~62 |
| Loading Pressure (g) | Counterweight 0~400 |
| Cutting Method | Rock arm feeding system Automatic stop cutting protection device |
| Rotational Speed (rpm) | 0~400 |
| Cutting Vise (Standard) | Long type vise kit |
| Horizontal Movement (mm) | 0.01 ~ 25 |
| Coolant Tank Capacity (mL) | 400 |

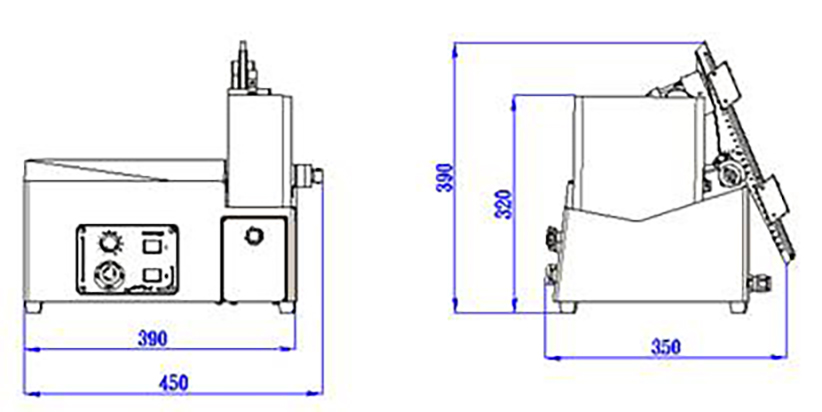

| Machine Dimension WxDxH (mm) | 440 x 420 x 350 |
| Machine Weight (kg) | 19 |
| Power Supply (V) | AC 110/220 1Ø |
| Standard Accessories | Coolant 1 L、Standard Vise*1(Ø40) |
| Options | Various Vise, Dressing System, Cut-off Wheel, Transparent Full Closure, Electric Magnetic Lock |
